The whole lamp with the powder coating is brighter without fading and corrosion configurable SD street lamp adapter, 120°Angle adjustment, Anti typhoon 17, Waterproof : IP 67
Power(W) | 120 |
Voltage(V) | 36 |
Current(mA) | 3200 |
CHIP Model | XPE/1LA5 |
LED QTY(pcs) | 96 |
Any way | 8P12S |
PCB size(mm) | Φ260﹡61﹡1.5 |
Power(W) | 120 | 200 |
Voltage(V) | 42 | 42 |
Current(mA) | 2560 | 4400 |
CHIP Model | 2835/3030 | 2835/3030 |
LED QTY(pcs) | 224 | 224 |
Any way | 16P14S | 16P14S |
PCB size(mm) | Φ260﹡61﹡1.5 | Φ260﹡61﹡1.5 |
Configured with a multitude of lens
Design Innovation, Cost-Performance
Manufactured with the process of pressing, the production efficiency is high, the heat dissipation performance of materials is fine, and the weight is generally 1 time lighter than that of common products. It’s easy to install, boasting a higher cost performance.
With an adjustable angle range of 180 °,the light can move as you want.
Supporting to adjust the lamp arm with 180°,changing the angle of the light at will.(The following figure is only schematic, different wattages, principle and function of the same.)

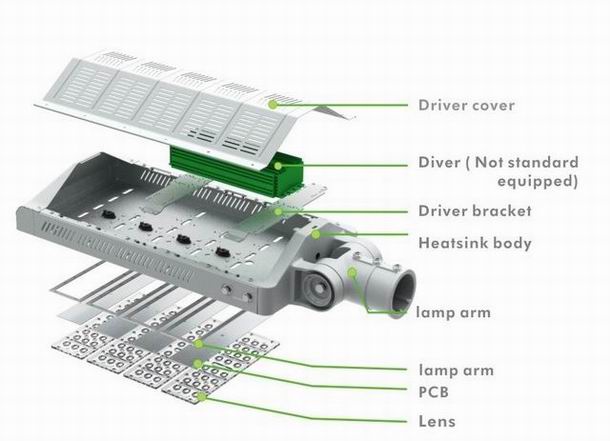

Prospective design, performance excellence
(The following figure is only schematic, different wattages, principle and function of the same)
Waterproof: IP67 With the silicone ring, the water-proof can be made to IP67, totally prevent the dust and water from rainstorm. |
Anti typhoon 17 Through wind tunnel test professional, 65 m/s at the highest wind speed,i.e. 17level of the typhoon, no deformation,loosening. Firmly |
Multi power selection
SD3B series includes 30w, 60w, 90w, 120w, 150w, 180w, 210w,a total of 7 heat radiating Suite product portfolio, According to the use of premises need to select appropriate heat radiating suite.
Widely used in arterial roads, highways, elevated road, city streets, bridges, sidewalks road lighting, and the square, school, residential areas, industrial areas, parks and other outdoor lighting places need.
