120W LED Street Light Heat Sink-SD120S

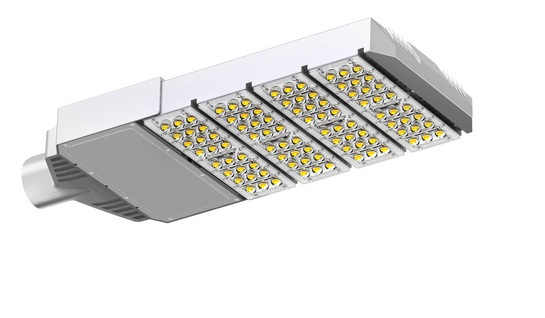

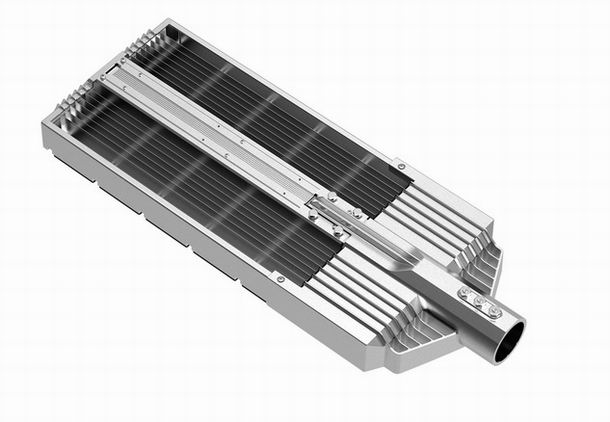

Photo Display:

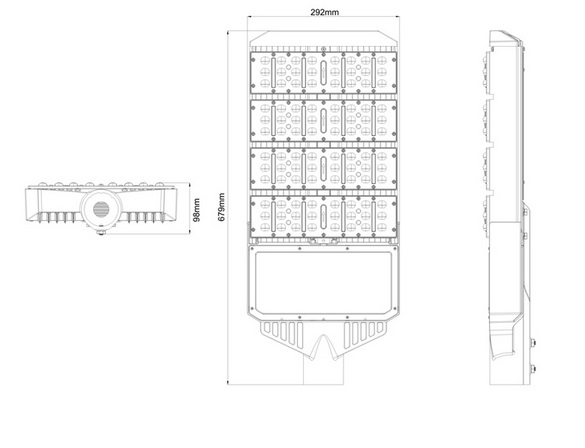

Size:
Parameters
| Power(W) | 120 |
| Voltage(V) | 36 |
| Current(mA) | 3200 |
| CHIP Model | CREE-XPE |
| LED QTY(pcs) | 96 |
| Any way | 8P12S |
| PCB size(mm) | L260﹡61﹡1.5 |
Application:
- All aluminum housing for the heat dissipating, greatly extending the life span of lighting source
- Free of dust and water, suitable for outdoor.
- Processed by painting treatment and anodic oxidation, solid and corrosion resisting.
- Waterproof: IP65
