12W LED Ceiling Light Heat Sink-STH12

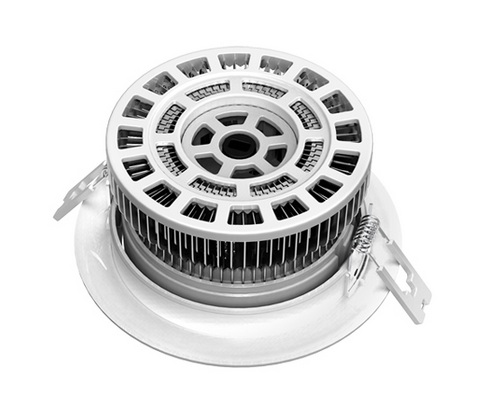

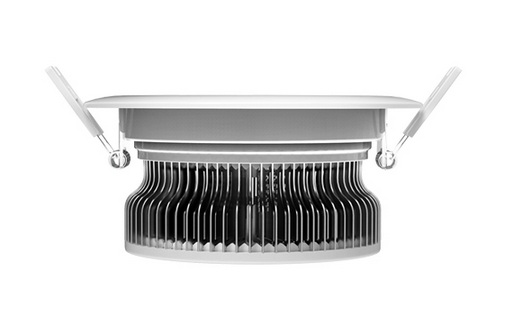

Photo Display:

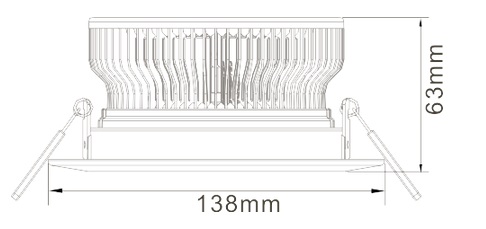

Size:
Parameters
| Power(W) | 12 |
| Voltage(V) | 36 |
| Current(mA) | 300 |
| CHIP Model | XPE/XPG 1LA5 |
| LED QTY(pcs) | 12 |
| Any way | 1P12S |
| PCB size(mm) | Φ77﹡2.0 |
| Beam Angle | XPE/XPG 60° 1LA5 35° |
Brief Description of 12W LED Ceiling Light Heat Sink-STH12
- Piece of fins: 0.4 * 66 Pcs
- Cooling area: 1510 CM2
- Applicable power: 12W
- Structure of the whole lamp: Heatsink+aluminum plate+power supply+lighting source.
- Available parts: Aluminum plate
- Customer DIY: Power supply+lighting source
- Dimention: Φ138*63
Application:
Widely used in hotel, restaurant,supermarket,museum,living room,dining room,sleeping room and so on.
