15W LED Down Light Heat Sink-STD15

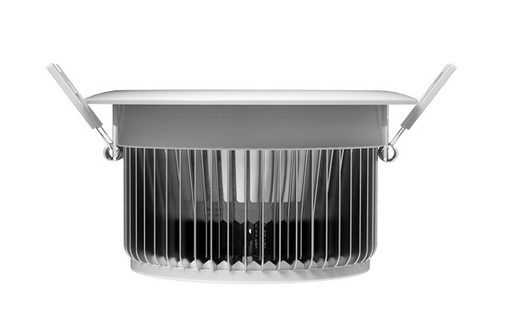

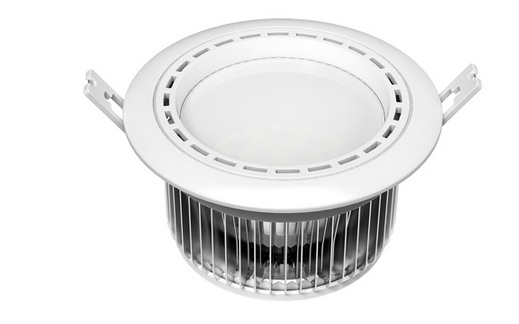

Photo Display:
Size:
Parameters
| Power(W) | 15 |
| Voltage(V) | 45 |
| Current(mA) | 300 |
| CHIP Model | XPE/XPG 1LA5 |
| LED QTY(pcs) | 15 |
| Way of Series-Parallel | 1 and 15series |
| PCB size(mm) | Φ77﹡2.0 |
Brief Description of 15W LED Down Light Heat Sink-STD15
- Cooling area:1625 CM2
- Piece of fins: 0.4 * 50 Pcs
- Applicable power: 9-15W
- Structure of the whole lamp: Heatsink + Aluminum plate + Lens + Power supply + Lighting source.
- Available parts: Aluminum plate
- Customer DIY: Power supply + lighting source

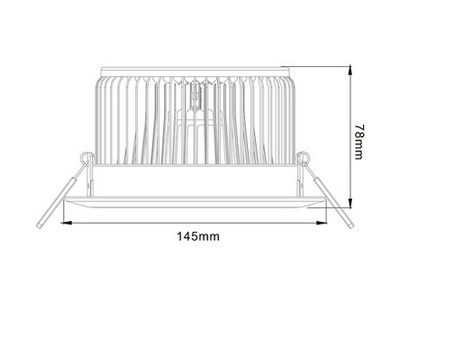

- Dimention: Φ145*78
Application:
Widely used in hotel, restaurant,supermarket,museum,living room,dining room,sleeping room and so on.
