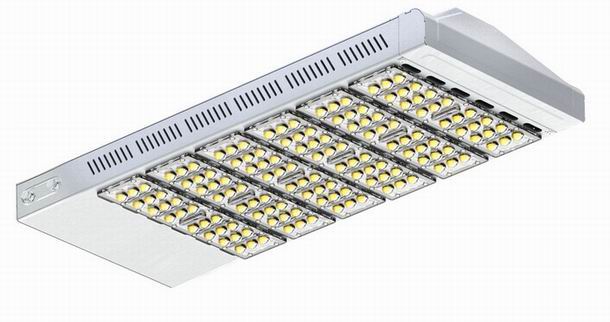

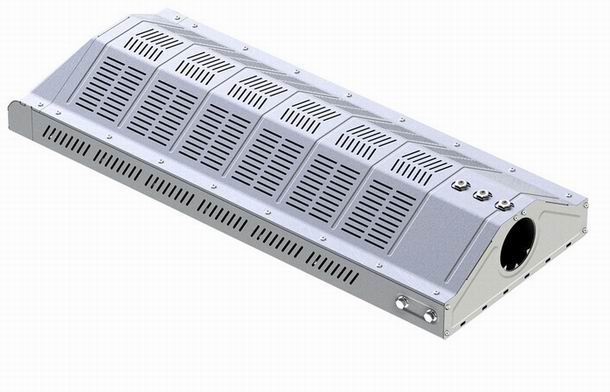

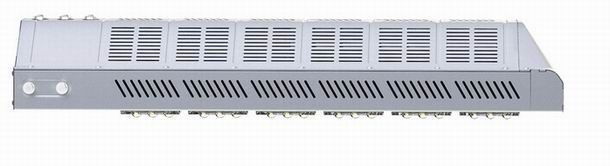

180/300W LED Street Light Heat Sink-SD180/300C

The new generation LED street lamp suite

The whole lamp with the powder coating is brighter without fading and corrosion configurable SD street lamp adapter, 120° Angle adjustment, Anti typhoon 17, Waterproof : IP 67.

180/300W LED Street Light Heat Sink-SD180/300C
180/300W LED Street Light Heat Sink-SD180/300C
180/300W LED Street Light Heat Sink-SD180/300C

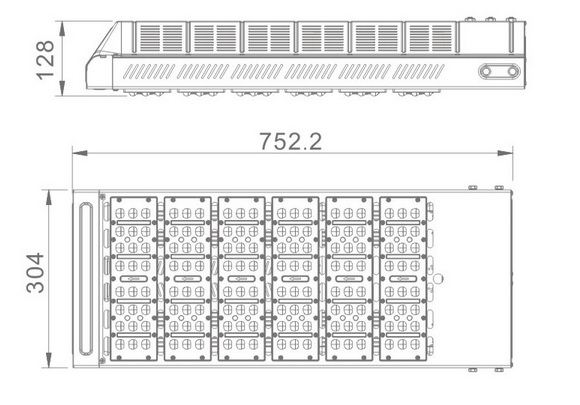

Size:

180/300W LED Street Light Heat Sink-SD180/300C

Parameters

Power(W)180
Voltage(V)36
Current(mA)4800
CHIP ModelXPE/1LA5
LED QTY(pcs)144
Any way12P12S
PCB size(mm)Φ260﹡61﹡1.5
Power(W)180300
Voltage(V)4242
Current(mA)38406600
CHIP Model2835/30302835/3030
LED QTY(pcs)336336
Any way24P14S24P14S
PCB size(mm)Φ260﹡61﹡1.5Φ260﹡61﹡1.5

Brief Description of 180/300W LED Street Light Heat Sink-SD180/300C

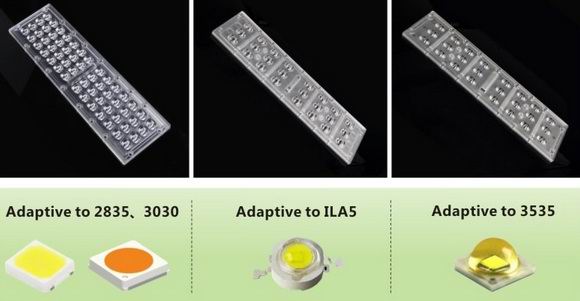

Configured with a multitude of lens

180/300W LED Street Light Heat Sink-SD180/300C

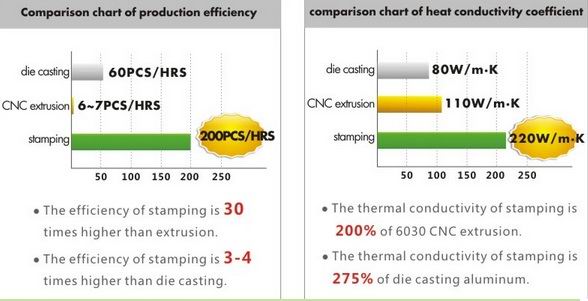

Design Innovation, Cost-Performance

Manufactured with the process of pressing, the production efficiency is high, the heat dissipation performance of materials is fine, and the weight is generally 1 time lighter than that of common products. It’s easy to install, boasting a higher cost performance.

180/300W LED Street Light Heat Sink-SD180/300C

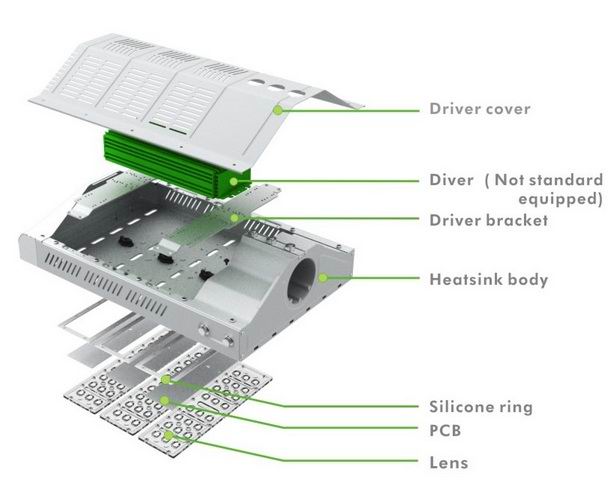

Prospective design, performance excellence

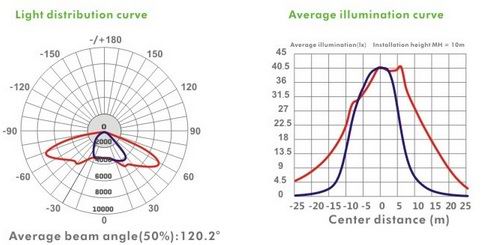

(The following figure is only schematic, different wattages, principle and function of the same)

180/300W LED Street Light Heat Sink-SD180/300C
Corrosion resistance
The whole lamp with the powder coating is without fading and corrosion, suitable for harsh outdoor environment.

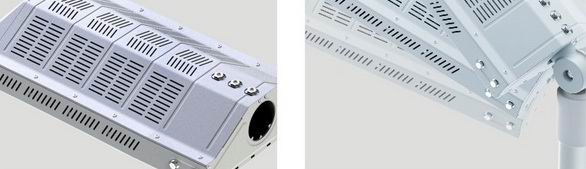

Configurable Street lamp adapter
SD streep lamp adapter,with clear scale, 120° angle adjustable
180/300W LED Street Light Heat Sink-SD180/300C
Waterproof: IP67
With the silicone ring, the water-proof can be made to IP67, totally prevent the dust and water from rainstorm.
Anti typhoon 17
Through wind tunnel test professional, 65 m/s at the highest wind speed,i.e. 17level of the typhoon, no deformation,loosening. Firmly

Multi power selection

SD3C series includes 30/50w-210/350w, a total of 7 heat radiating Suite product portfolio, According to the use of premises need to select appropriate heat radiating suite.

180/300W LED Street Light Heat Sink-SD180/300C

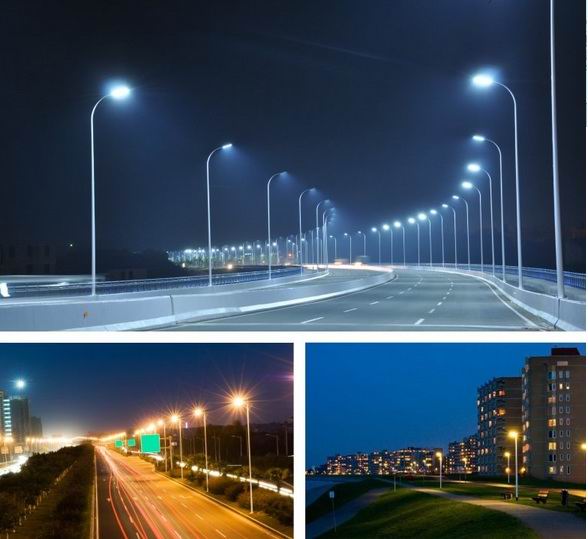

Application

Widely used in arterial roads, highways, elevated road, city streets, bridges, sidewalks road lighting, and the square, school, residential areas, industrial areas, parks and other outdoor lighting places need.

180/300W LED Street Light Heat Sink-SD180/300C

LED heatsink+ lighting engineering solution provider

180/300W LED Street Light Heat Sink-SD180/300C

Professional service superior performance

180/300W LED Street Light Heat Sink-SD180/300C

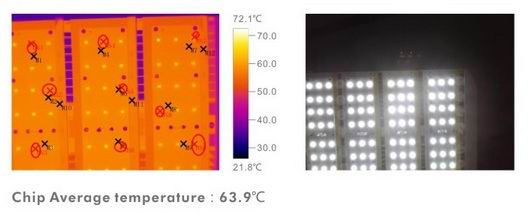

Chip temperature test

180/300W LED Street Light Heat Sink-SD180/300C
