20W LED Flood Light Heat Sink-SD20A

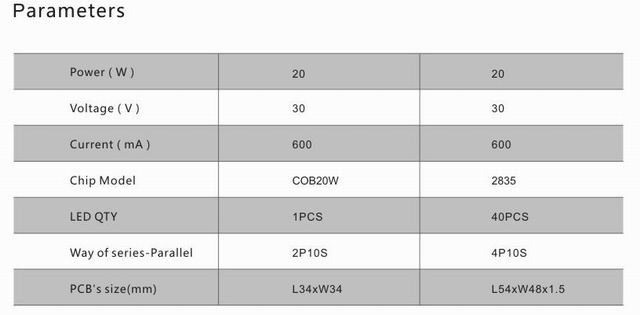

Image: 20W LED Flood Light Heat Sink-SD20A Parameters

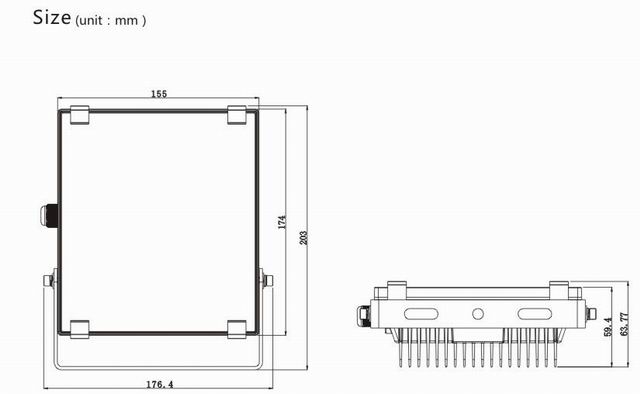

Image: 20W LED Flood Light Heat Sink-SD20A Size

The most efficient flood light heat-sink for the new generation of green led lighting

LED has proved to be the trend of next generation lighting for it’s environment friendly, energy-saving, light efficiency, reliability, SD’s innovative LED heatsinks with the powerful heat dissipation capability and reliability greatly extend the LED lightings lifespan, thus remarkable reduce the expense of lighting operation and maintenance.

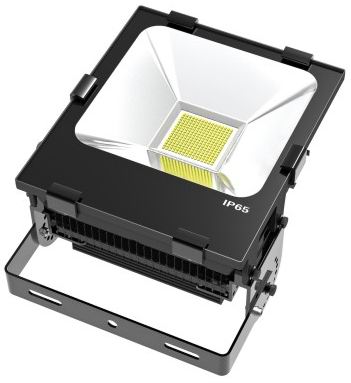

Image: 20W LED Flood Light Heat Sink-SD20A 8

Brief Description of 20W LED Flood Light Heat Sink:

• Product Feature
  1. By using the most powerful and efficient flood light heatsink, the completed LED light can work up to 50000 hours, save up to 80% energy, have better lighting characteristics than that of traditional metal halide lamp of 40w;
  2. Riveting the heatpipe to the heatsink, rapidly transfer the heat of the LED chips to the massive fins;
  3. Protection rate:IP65.
• Materials And Process
  1. Tempered glass panel to protect the lighting source, the transparent rate up to 93%;
  2. 1060 aluminium heatsink with “zipped-fins” technology, optimized airflow duct inside the housing;
  3. The entire housing coated by electrophoretic paint, excellent corrosion resistance;
  4. Stainless steel screws and parts.
• Innovations

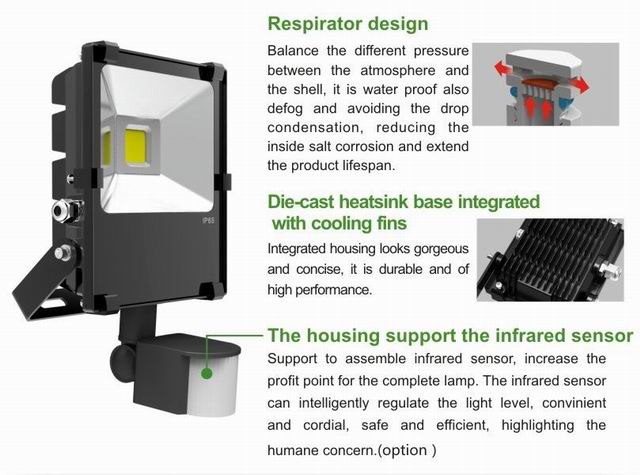

Image: 20W LED Flood Light Heat Sink-SD20A 4

• WE CAN DO CUSTOMIZING-MORE OPTIONS AVAILABLE FOR YOU
  The housing compatible for different kinds of LED chips and brackets.
  Most of the mainstream manufacturers’led chips and their chip-scale package are compatible to the structure of the housing, we can also customize the installation structure accord to your chip-package’s size (square, circle etc.)

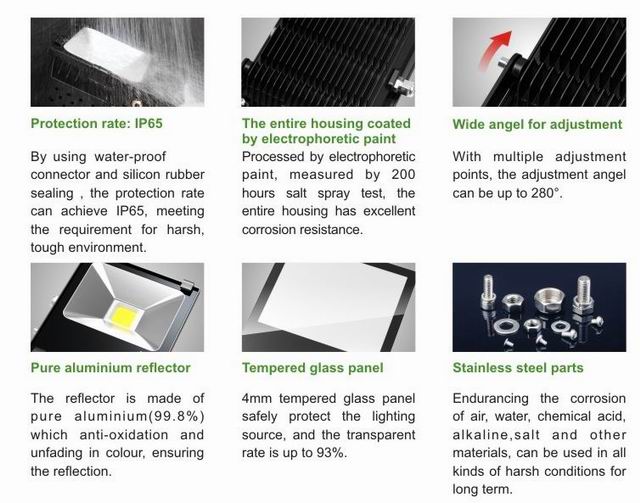

Image: 20W LED Flood Light Heat Sink-SD20A 1

• EXCELLENT PERFORMANCE STRONG PROTECTION

Image: 20W LED Flood Light Heat Sink-SD20A 1

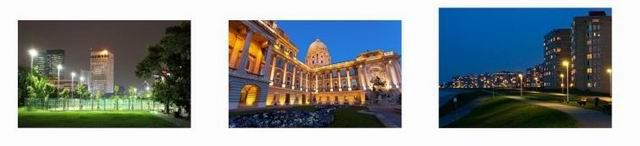

• Applications
  LED flood light is widely used in shopping center , exhibition hall, parking lot, stadium, gymnasia, billboard, park, statue, government lighting decoration project, landmark or building, public square and passage, building connecting passage, and other indoor or outdoor light applications.

Image: 20W LED Flood Light Heat Sink-SD20A 5

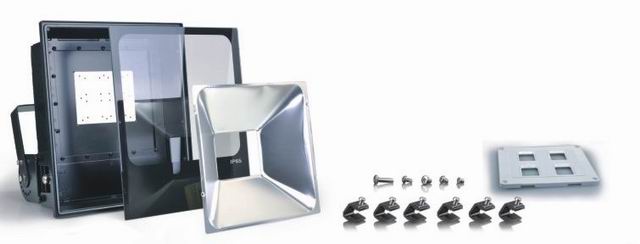

• Kit Showbr> Elegant technology taken in kind ,feeling the perfect texture, and experiencing our whole core servicebr> (The housing mainly includes heatsink body, tempered glass, reflector, light source bracket; without light source, driver and PCB.)br>

Image: 20W LED Flood Light Heat Sink-SD20A 3


Efficient

• Riveting the heatpipe to the heatsink, rapidly transfer the heat of the
• Easy to install
• Easy to install and convenient for maintenance.
• Waterproof Grade:IP65
• Prevent dusts and water
• Professional design
• Fashionable texture, focusing on heatsink design, and having patent protection.
