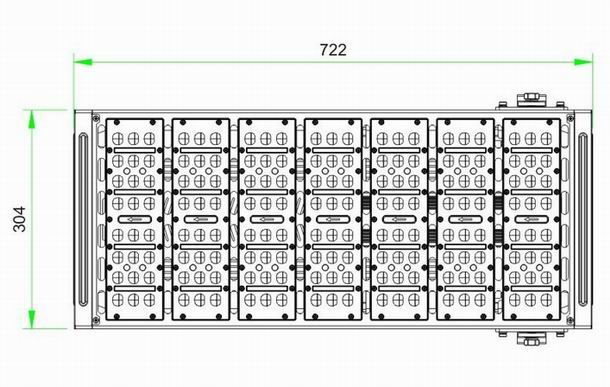

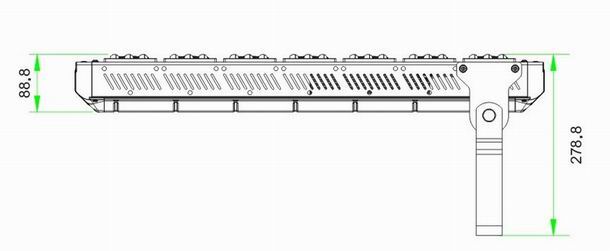

unit: mm
Parameters
Power(W) | 210 | |
Voltage(V) | 36 | |
Current(mA) | 5600 | |
CHIP Model | 3535/1LA5 | |
LED QTY(pcs) | 168 | |
Any way | 14P12S | |
PCB size(mm) | 260﹡61﹡1.5 |
Power(W) | 210 | 350 |
Current(mA) | 4480 | 7700 |
Voltage(V) | 42 | 42 |
CHIP Model | 2835/3030 | 2835/3030 |
LED QTY(pcs) | 392 | 392 |
Any way | 28P14S | 28P14S |
PCB size(mm) | 260﹡61﹡1.5 | 260﹡61﹡1.5 |
DESIGN A LAMP
ILLUMINATE A CITY

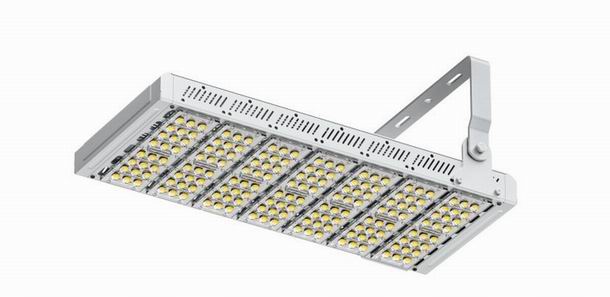

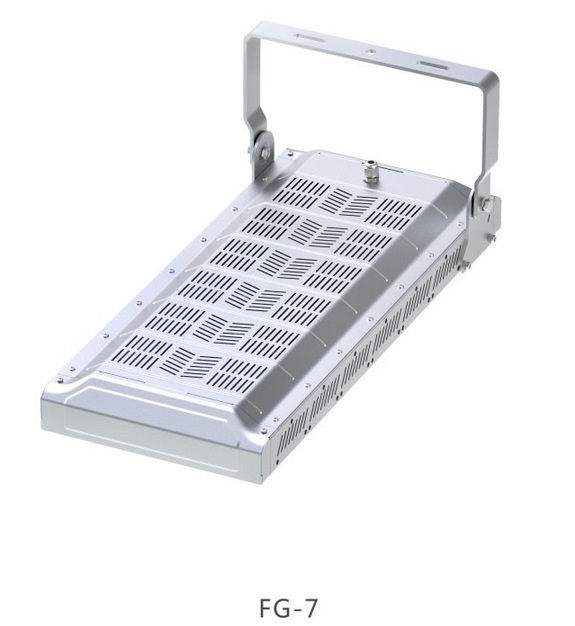

MULTIPLE APPLICATIONS, FG SERIES FLOOD LIGHT HEATSINK

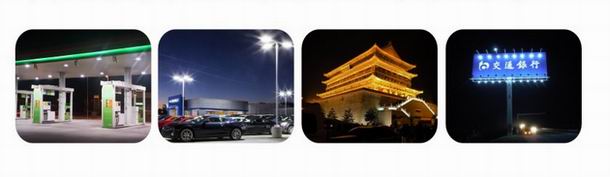

30W-210W/50W-350W available, total 7 models optional, applied for street lighting, Projection lighting, city decorative lighting, construction lighting, advertising lighting

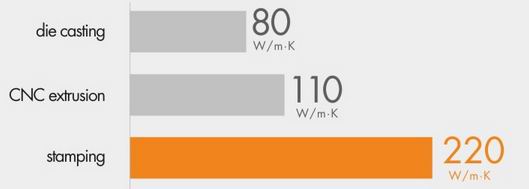

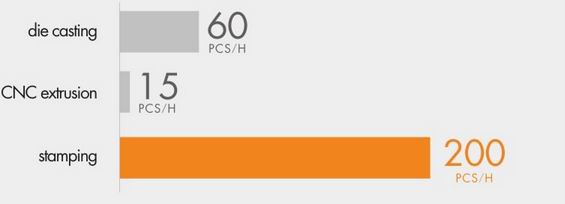

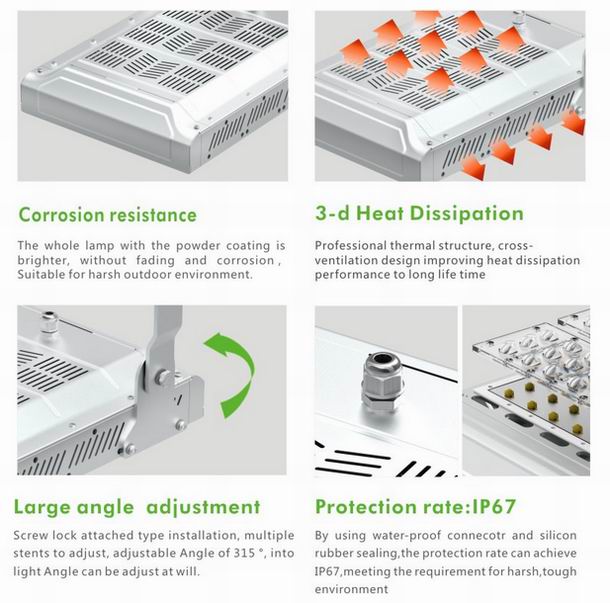

Stamping process, high production efficiency guarantees shortest lead time, good heat dissipation performance, lighting weight, easy assembly and cost effective

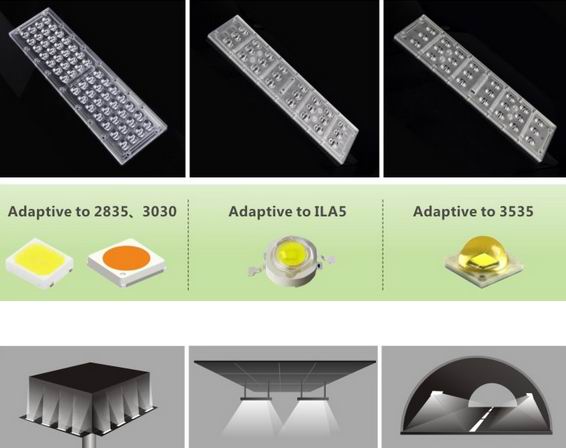

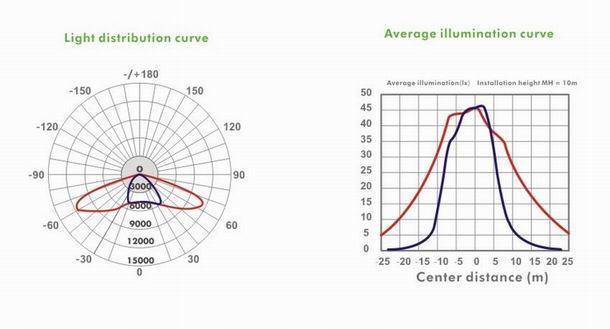

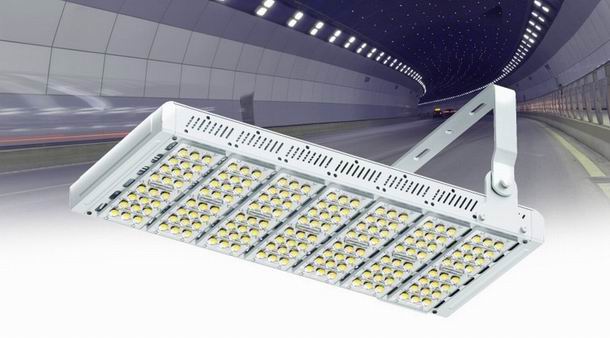

Equipped with 56 pcs and 24 pcs optical quality PC lens, featuring UV filter, excellent weather resistance against yellowing and even light distribution, the product is compatible with various LED lights such as 2835,3030,ILA5 and 3535. The lens has asymmetric beam anglesL150*75°,90°*50°,75°*30° and symmetrical beam anglesL15°,25°,40°,60°,90° available. It can be used as tunnel lamp, high-bay lamps, spotlights and advertising lamps.

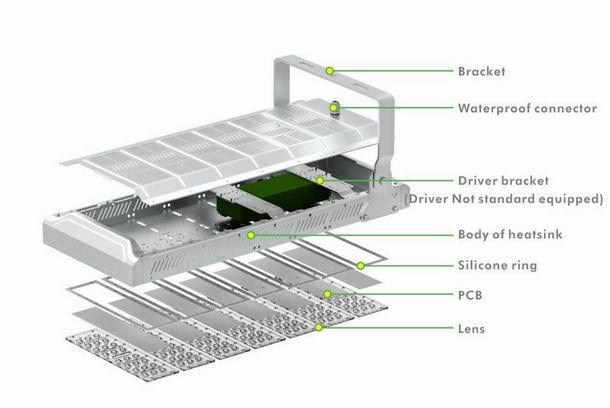

(Following are abbreviated drawing, different watts, same functions)

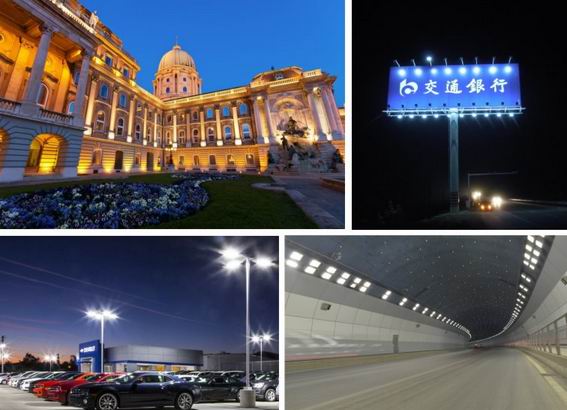

Applied for street lighting, projection lighting, city decorative lighting, construction lighting, ads. Lighting.
