» Home > LED Diodes > 300W Super High Power LED Light Source

300W Super High Power LED Light Source

Model No. Color WL(nm)/CCT(K)Chip QuantityChip Brand Input voltage(V)Input current (mA)
SD-P300R-300W01 Red 620 - 660nm 15 * 20 = 300Epileds 44 - 48V 5250mA
SD-P300Y-300W01 Yellow585 - 595nm 15 * 20 = 300Epileds 44 - 48V 5250mA
SD-P300G-300W01 Green 520 - 530nm 15 * 20 = 300Epistar, Bridgelux, Cree66 - 72V 5250mA
SD-P300B-300W01 Blue 460 - 470nm 15 * 20 = 300Epistar, Bridgelux, Cree66 - 72V 5250mA
SD-P300W-300W01 White 6000 - 7000K15 * 20 = 300Epistar, Bridgelux, Cree66 - 72V 5250mA
SD-P300WW-300W01 White 2700 - 3300K15 * 20 = 300Epistar, Bridgelux, Cree66 - 72V 5250mA
  • Absolute Maximum Ratings At Ta=25°C
  • Viewing Angle(°): 120±5
  • CRI: 70-95 Ra are available
  • Circuit structure: 15 * 20
  • PCB Board Material: Copper Board
  • Gold thread spec: 1.2mil Au
  • ESD Sensitivity(V): 4000
  • Storage Temperature(°C): -35 ~ +100
  • Operating Temperature(°C): 350 for 5 seconds Max
  • Lead Soldering Temperature(°C): -35 ~ +80

Features

  • Super Cost Saving 50%
  • Ultimate Stability
  • Super Fast heat Transfer
  • Superior Power-Density
  • Up to 140LM/W
  • Good Quality& High Cost Performance
  • Environment-friendly: no mercury and other harmful heavy metal, no light harmful for plant
  • Idea you give, Customized product we supply , contact us now

Warranty

  • Three years quality assurance
  • High power LED light commitment (substrate temperature <55℃): 1000h < 3%; 3000h < 5%; 10000h < 10%

Advantages

  • Long life: product life of up to 50,000 hours
  • Nanosecond response time, brightness and color make it easy to dynamically control: enables dynamic color changes and digital control
  • A large design space: the organic architecture can be realized with the integration to only see the effect of light not seen light
  • Environmental protection: no toxic metals mercury, no infrared and ultraviolet radiation.
  • Color: different wavelengths produce different colored light, bright saturated, no filter, can control red, green and blue primary colors to form a variety of colors, can realize full-color gradients, and other color effects.
  • Less power consumption: light effects to 60 lm/w of the LED power consumption than equivalent incandescent brightness reduced by 80%;

Applications for 300W High Power LED Light Source

  • High Bay Light, Stage Light
  • Flood light,Spot light for ourdoor
  • Growing light for plant,vegetable,flower

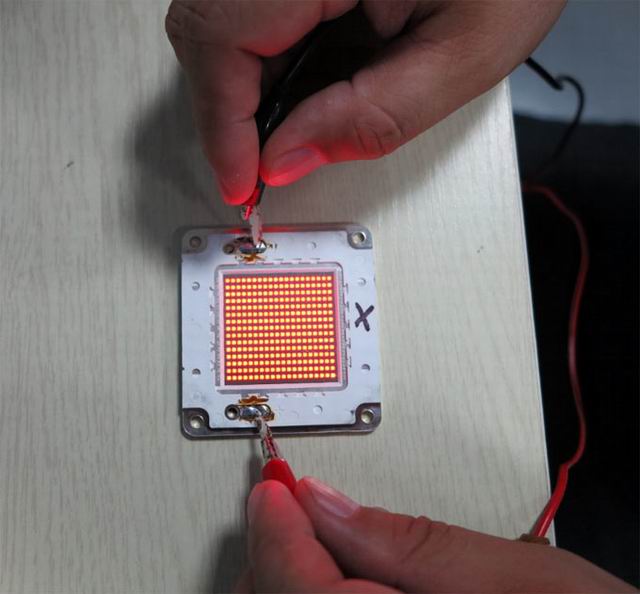

Products Pictures of 300W Super High Power LED Light Source

Products Pictures of 300W Super High Power LED Light Source
