400W High Power LED Light Source
Model No. | Color | WL(nm)/CCT(K) | Chip Quantity | Chip Brand | Input voltage(V) | Input current (mA) |
SD-P400R-400W01 | Red | 620 - 660nm | 20 * 20 = 400 | Epileds | 44 - 48V | 7000mA |
SD-P400Y-400W01 | Yellow | 585 - 595nm | 20 * 20 = 400 | Epileds | 44 - 48V | 7000mA |
SD-P400G-400W01 | Green | 520 - 530nm | 20 * 20 = 400 | Epistar, Bridgelux, Cree | 66 - 72V | 7000mA |
SD-P400B-400W01 | Blue | 460 - 470nm | 20 * 20 = 400 | Epistar, Bridgelux, Cree | 66 - 72V | 7000mA |
SD-P400W-400W01 | White | 6000 - 7000K | 20 * 20 = 400 | Epistar, Bridgelux, Cree | 66 - 72V | 7000mA |
SD-P400WW-400W01 | White | 2700 - 3300K | 20 * 20 = 400 | Epistar, Bridgelux, Cree | 66 - 72V | 7000mA |
- Absolute Maximum Ratings At Ta=25°C
- Viewing Angle(°): 120±5
- CRI: 70-95 Ra are available
- Circuit structure: 20 * 20
- PCB Board Material: Copper Board
- Gold thread spec: 1.2mil Au
- ESD Sensitivity(V): 4000
- Storage Temperature(°C): -35 ~ +100
- Operating Temperature(°C): 350 for 5 seconds Max
- Lead Soldering Temperature(°C): -35 ~ +80
Features
- Super Cost Saving 50%
- Ultimate Stability
- Super Fast heat Transfer
- Superior Power-Density
- Up to 140LM/W
- Good Quality& High Cost Performance
- Environment-friendly: no mercury and other harmful heavy metal, no light harmful for plant
- Idea you give, Customized product we supply , contact us now
Warranty
- Three years quality assurance
- High power LED light commitment (substrate temperature <55℃): 1000h < 3%; 3000h < 5%; 10000h < 10%
Advantages
- Long life: product life of up to 50,000 hours
- Nanosecond response time, brightness and color make it easy to dynamically control: enables dynamic color changes and digital control
- A large design space: the organic architecture can be realized with the integration to only see the effect of light not seen light
- Environmental protection: no toxic metals mercury, no infrared and ultraviolet radiation.
- Color: different wavelengths produce different colored light, bright saturated, no filter, can control red, green and blue primary colors to form a variety of colors, can realize full-color gradients, and other color effects.
- Less power consumption: light effects to 60 lm/w of the LED power consumption than equivalent incandescent brightness reduced by 80%;
Applications for 400W High Power LED Light Source
- High Bay Light, Stage Light
- Flood light,Spot light for ourdoor
- Growing light for plant,vegetable,flower

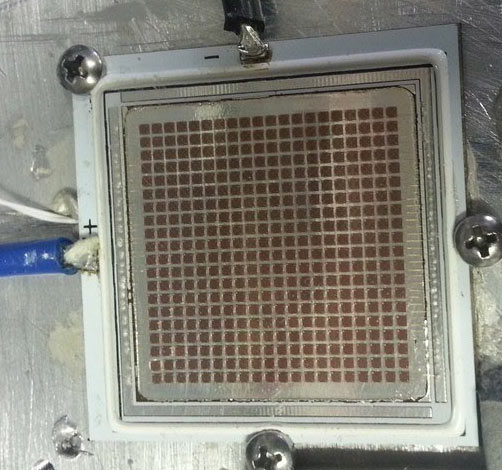

Products Pictures of 400W Super High Power LED Light Source
