5-7W LED Panel Light Heat Sink-SDBA5-7

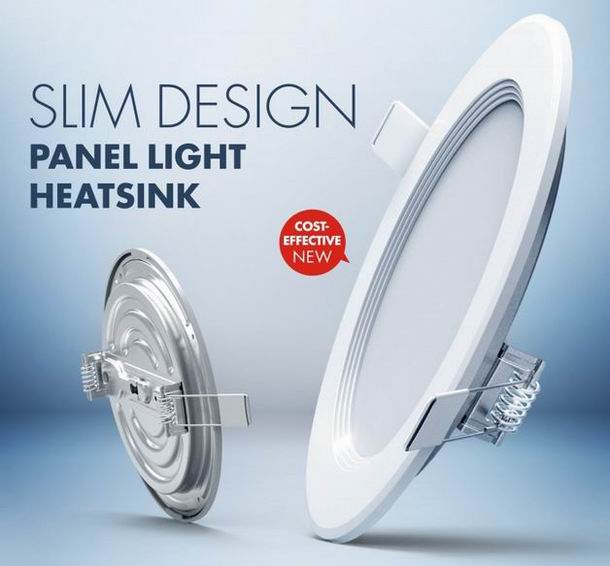

SBA SERIES PANEL LIGHT HEATSINK

Extremely slim design at 11.5mm, sophisticated material selection, highly cost effective, including 2.5 inches, 3 inches, 3.5 inches,4 inches, 5 inches, 6 inches and 8 inches total seven models, widely used in various lighting fields such as home lighting, office lighting, commercial lighting, hotel lighting.

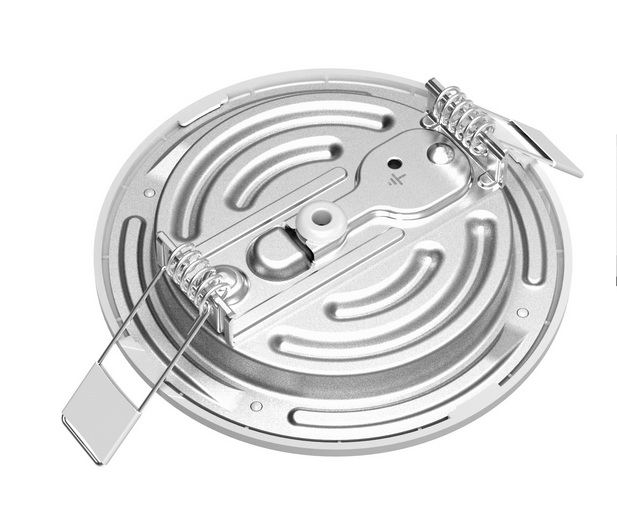

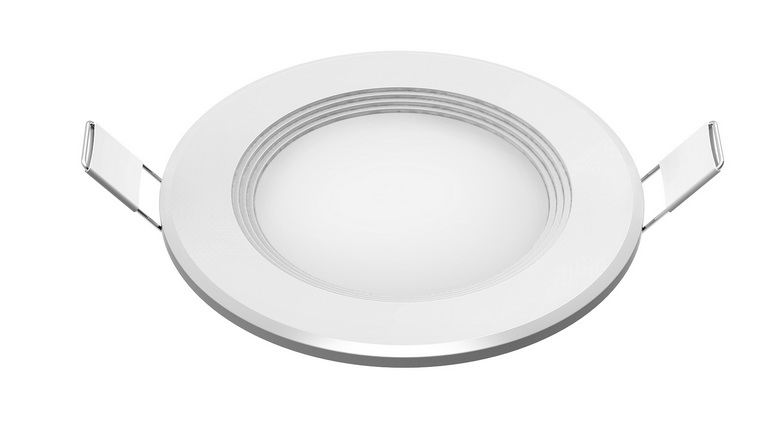

Photo Display:

5-7W LED Panel Light Heat Sink-SDBA5-7
5-7W LED Panel Light Heat Sink-SDBA5-7
5-7W LED Panel Light Heat Sink-SDBA5-7

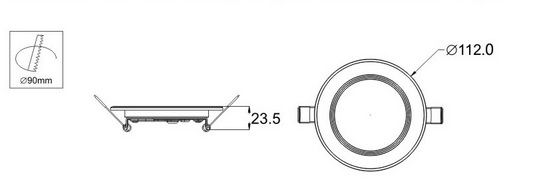

Size:

5-7W LED Panel Light Heat Sink-SDBA5-7

Brief Description of 5-7W LED Panel Light Heat Sink-SDBA5-7

Design Innovation, Cost-performance

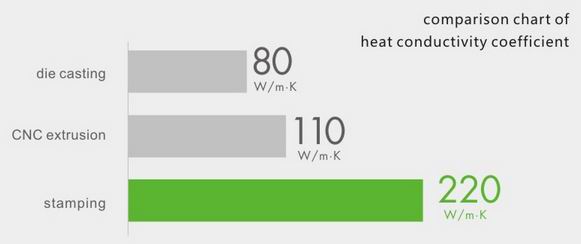

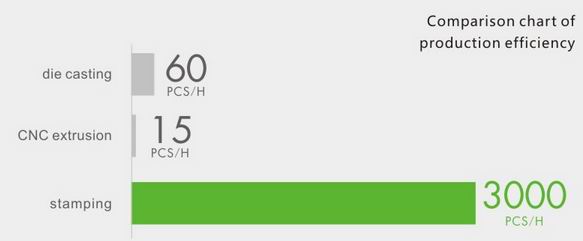

Stamping process manufacturing, high production efficiency, short leadtime, good thermal performance, light weight for easy installation, more cost-effective.

5-7W LED Panel Light Heat Sink-SDBA5-7
5-7W LED Panel Light Heat Sink-SDBA5-7

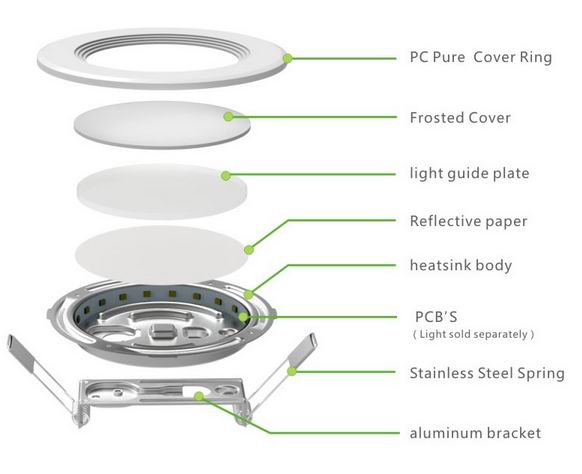

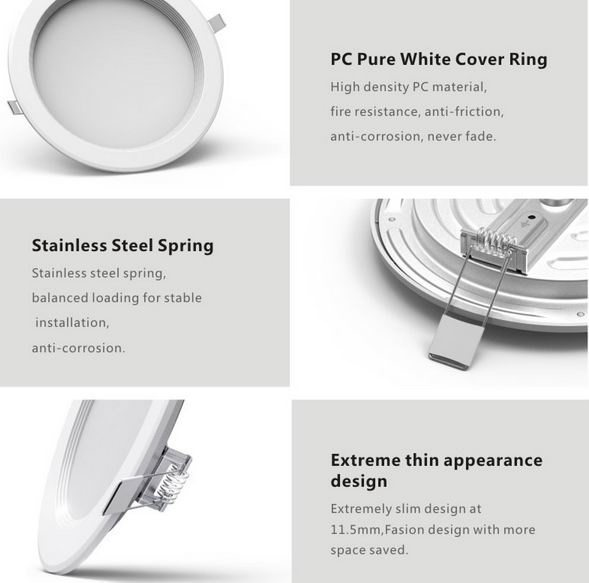

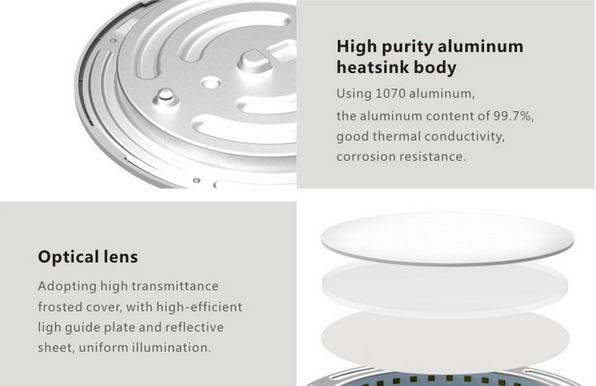

Fine Selection of Quality Material

5-7W LED Panel Light Heat Sink-SDBA5-7
5-7W LED Panel Light Heat Sink-SDBA5-7

Parameters

Power(W)57
Voltage(V)1521
Current(mA)300300
CHIP Model28352835
LED QTY(pcs)2535
Any way5P4S5P7S
PCB size(mm)Φ251﹡8*0.4Φ251﹡8*0.4

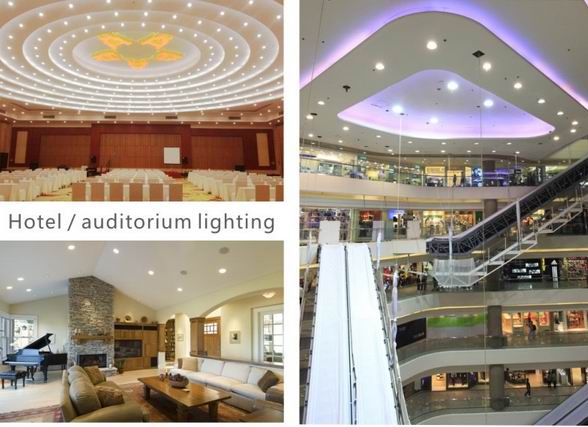

Application:

Widely used in various applications such as for residential, office, commercial, hotel… etc.

5-7W LED Panel Light Heat Sink-SDBA5-7

    Home Lighting &nbps; &nbps; &nbps; &nbps; &nbps; &nbps; Commercial Lighting
