» Home > LED Diodes > 600W High Power LED Light Source

600W High Power LED Light Source

Model No. Color WL(nm)/CCT(K)Chip QuantityChip Brand Input voltage(V)Input current (mA)
SD-P600R-600W01 Red 620 - 660nm 25 * 25 = 625Epileds 55 - 60V 8750mA
SD-P600Y-600W01 Yellow585 - 595nm 25 * 25 = 625Epileds 55 - 60V 8750mA
SD-P600G-600W01 Green 520 - 530nm 25 * 25 = 625Epistar, Bridgelux, Cree82 - 90V 8750mA
SD-P600B-600W01 Blue 460 - 470nm 25 * 25 = 625Epistar, Bridgelux, Cree82 - 90V 8750mA
SD-P600W-600W01 White 6000 - 7000K25 * 25 = 625Epistar, Bridgelux, Cree82 - 90V 8750mA
SD-P600WW-600W01 White 2700 - 3300K25 * 25 = 625Epistar, Bridgelux, Cree82 - 90V 8750mA
  • Absolute Maximum Ratings At Ta=25°C
  • Viewing Angle(°): 120±5
  • CRI: 70-95 Ra are available
  • Circuit structure: 25 * 20
  • PCB Board Material: Copper Board
  • Gold thread spec: 1.2mil Au
  • ESD Sensitivity(V): 4000
  • Storage Temperature(°C): -35 ~ +100
  • Operating Temperature(°C): 350 for 5 seconds Max
  • Lead Soldering Temperature(°C): -35 ~ +80

Features

  • Super Cost Saving 50%
  • Ultimate Stability
  • Super Fast heat Transfer
  • Superior Power-Density
  • Up to 140LM/W
  • Good Quality& High Cost Performance
  • Environment-friendly: no mercury and other harmful heavy metal, no light harmful for plant
  • Idea you give, Customized product we supply , contact us now

Warranty

  • Three years quality assurance
  • High power LED light commitment (substrate temperature <55℃): 1000h < 3%; 3000h < 5%; 10000h < 10%

Advantages

  • Long life: product life of up to 50,000 hours
  • Nanosecond response time, brightness and color make it easy to dynamically control: enables dynamic color changes and digital control
  • A large design space: the organic architecture can be realized with the integration to only see the effect of light not seen light
  • Environmental protection: no toxic metals mercury, no infrared and ultraviolet radiation.
  • Color: different wavelengths produce different colored light, bright saturated, no filter, can control red, green and blue primary colors to form a variety of colors, can realize full-color gradients, and other color effects.
  • Less power consumption: light effects to 60 lm/w of the LED power consumption than equivalent incandescent brightness reduced by 80%;

Applications for 600W High Power LED Light Source

  • High Bay Light, Stage Light
  • Flood light,Spot light for ourdoor
  • Growing light for plant,vegetable,flower

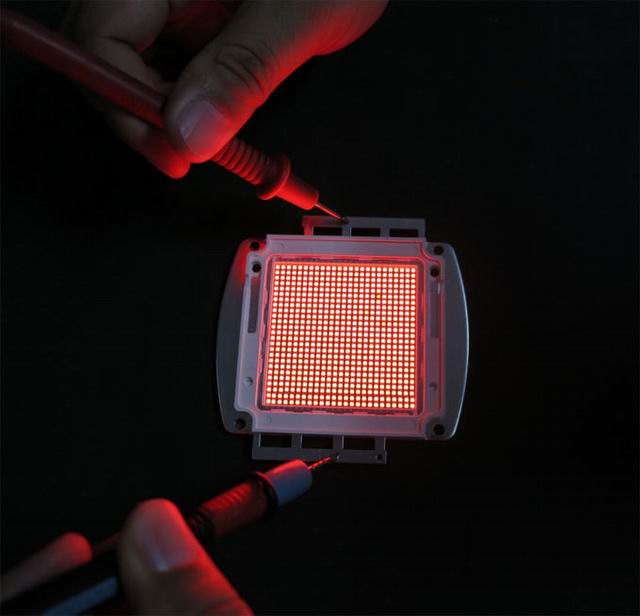

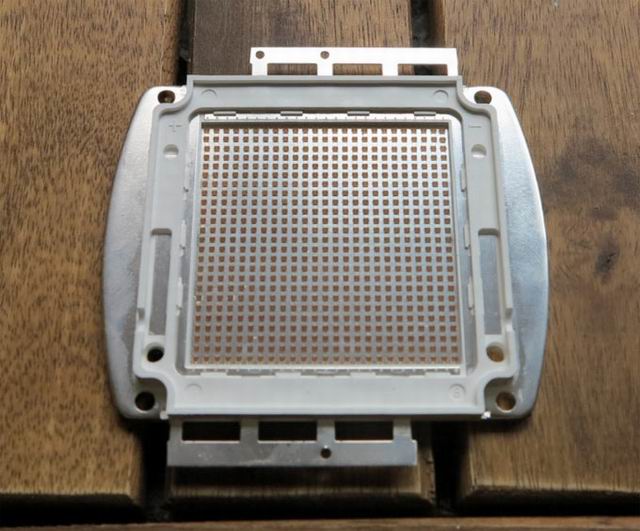

Products Pictures of 600W Super High Power LED Light Source

Products Pictures of 600W Super High Power LED Light Source
Products Pictures of 600W Super High Power LED Light Source
