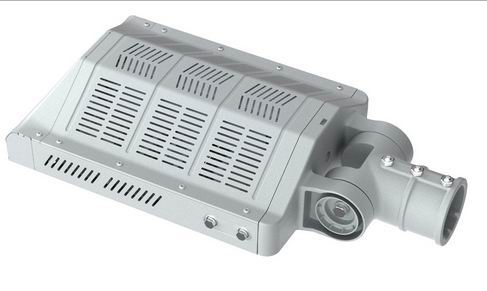

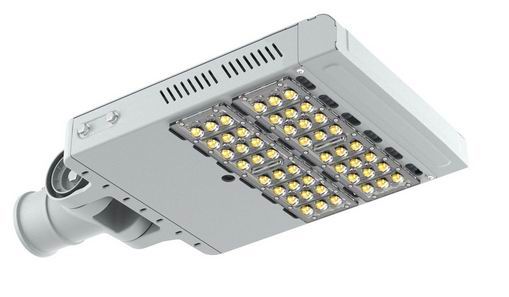

60/100W LED Street Light Heat Sink-SD60/100B

The new generation LED street lamp suite

The whole lamp with the powder coating is brighter without fading and corrosion configurable SD street lamp adapter, 120°Angle adjustment, Anti typhoon 17, Waterproof : IP 67

60/100W LED Street Light Heat Sink-SD60/100B
60/100W LED Street Light Heat Sink-SD60/100B

Size:

60/100W LED Street Light Heat Sink-SD60/100B

Parameters

Power(W)60
Voltage(V)42
Current(mA)800
CHIP ModelXPE/1LA5
LED QTY(pcs)48
Any way4P12S
PCB size(mm)Φ260﹡61﹡1.5
Power(W)60100
Voltage(V)4242
Current(mA)12802200
CHIP Model2835/30302835/3030
LED QTY(pcs)112112
Any way8P14S8P14S
PCB size(mm)Φ260﹡61﹡1.5Φ260﹡61﹡1.5

Brief Description of 60/100W LED Street Light Heat Sink-SD60/100B

Configured with a multitude of lens

LED Street Light Heat Sink

Design Innovation, Cost-Performance

Manufactured with the process of pressing, the production efficiency is high, the heat dissipation performance of materials is fine, and the weight is generally 1 time lighter than that of common products. It’s easy to install, boasting a higher cost performance.

LED Street Light Heat Sink

With an adjustable angle range of 180 °,the light can move as you want.

Supporting to adjust the lamp arm with 180°,changing the angle of the light at will.(The following figure is only schematic, different wattages, principle and function of the same.)

LED Street Light Heat Sink

Prospective design, performance excellence

(The following figure is only schematic, different wattages, principle and function of the same)

LED Street Light Heat Sink
Waterproof: IP67
With the silicone ring, the water-proof can be made to IP67, totally prevent the dust and water from rainstorm.
Anti typhoon 17
Through wind tunnel test professional, 65 m/s at the highest wind speed,i.e. 17level of the typhoon, no deformation,loosening. Firmly

Multi power selection

SD3B series includes 30w,60w,90w,120w,150w,180w,210w,a total of 7 heat radiating Suite product portfolio, According to the use of premises need to select appropriate heat radiating suite.

LED Street Light Heat Sink

Application

Widely used in arterial roads, highways, elevated road, city streets, bridges, sidewalks road lighting, and the square, school, residential areas, industrial areas, parks and other outdoor lighting places need.

LED Street Light Heat Sink

LED heatsink+ lighting engineering solution provider

60/100W LED Street Light Heat Sink-SD60/100B

Professional service superior performance

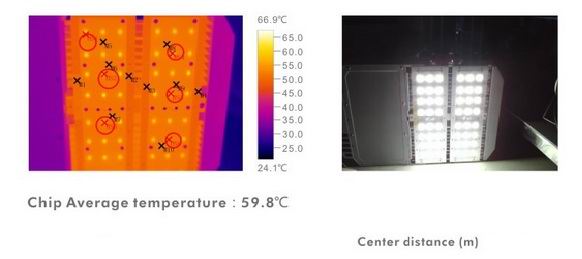

Chip temperature test
