UV LED Light Source Features
- Bridgelux, Epistar, Epileds Chips
- Japanese Dow Corning Silicon packing, in accordance with environmental protection
- Intematix fluorescent powder, quality assurance
- Gold wire: 1.25mil huge diameter
- High brightness,low light attenuation,less power, Long lifespan.
- Lights attenuation: less than 1%
- Reasonable prices, fast delivery( 3 - 5 days)
- CE & RoHS
Specifications for 80W,100W,200W,300W,400W,500W UV High Power LED
|Power ||80w ||100W ||160W ||200w ||300w ||400w ||500w|
|Color ||UV ||UV ||UV ||UV ||UV ||UV ||UV|
|Wavelength ||365 - 420nm (365-370nm,380-385nm,390-395nm,ect.) |
|Lumen ||2000 - 3000lm ||4000 - 5600lm||5000 - 7000lm||18000 - 24000lm||16000 – 18000lm||14000 - 21000lm|
|Chip Brand ||Epileds, Bridgelux, Epistar|
|Chip Size ||30mil, 40mil, 45mil|
|Voltage ||30 - 34V ||60 - 66V|
|Current ||2400- 2800mA||3000 – 3500mA||2400 - 2800mA||4500 – 5250mA||3000 - 3500mA ||4500 - 5250mA ||6600 - 7700mA|
- Less power consumption: light effects to 75lm / w of the LED power consumption than equivalent incandescent brightness reduced by 80%
- Long life: product life of up to 50,000 hours
- Nanosecond response time, brightness and color make it easy to dynamically control: enables dynamic color changes and digital control
- Individualized design: can be designed by your pictures or mind
- Environmental protection: no toxic metals mercury, no infrared and ultraviolet radiation
- Color: different wavelengths produce different colored light, can control red, green and blue primary colors to form a variety of colors

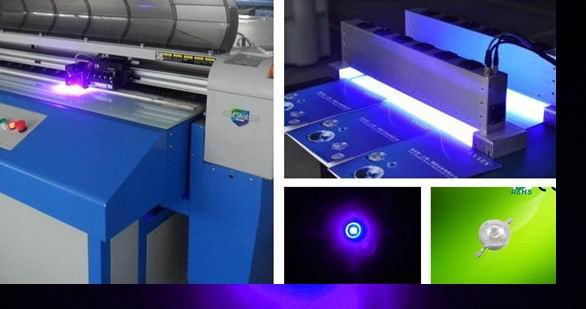

Applications for UV High Power Led
1w high power led bead is widely used on outdoor light, flood light, ceiling light, spot light, stage light, down light etc.
- All the raw materials for above products are from domestic and foreign well-known brand manufactures.
- All products will be with strict tested before shipping.
- Choosing the best logistics services for all shipments.
- 2 years warranty for our products

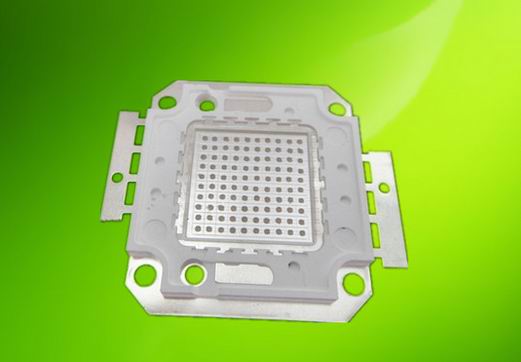

Image: High Power UV LED 100W

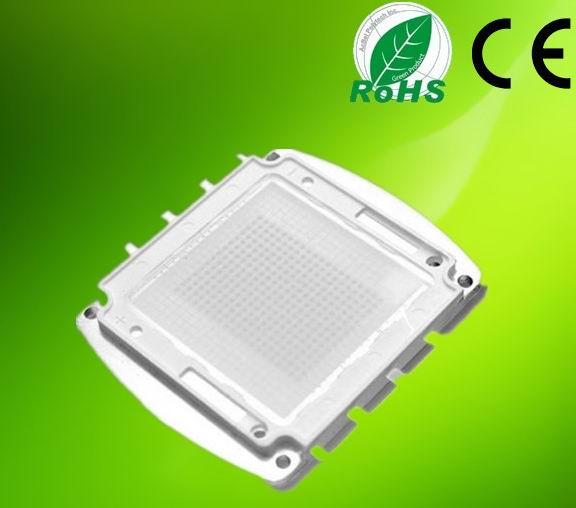

Image: High Power UV LED 160W

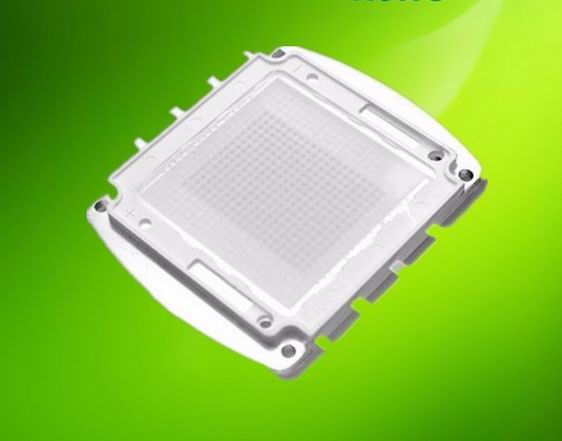

Image: High Power UV LED 200W

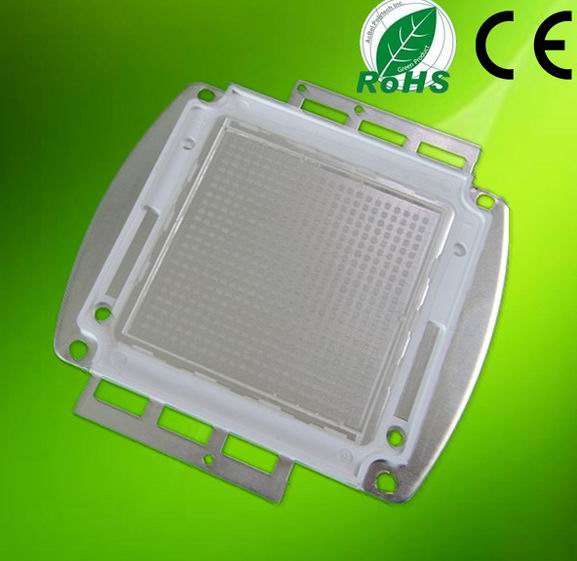

Image: High Power UV LED 400W

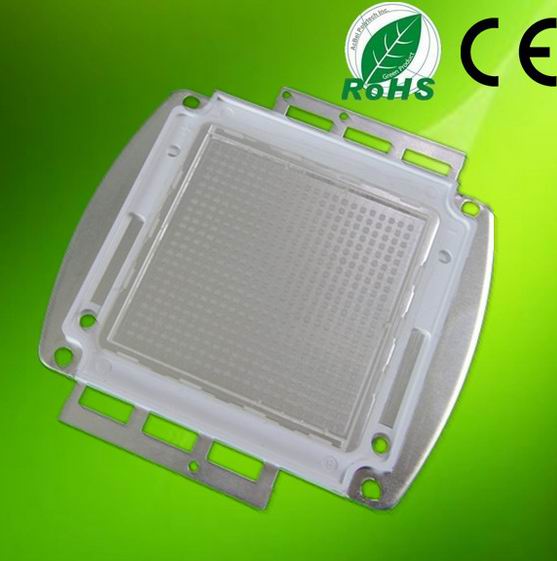

Image: High Power UV LED 500W
UV LED Lighting Effect

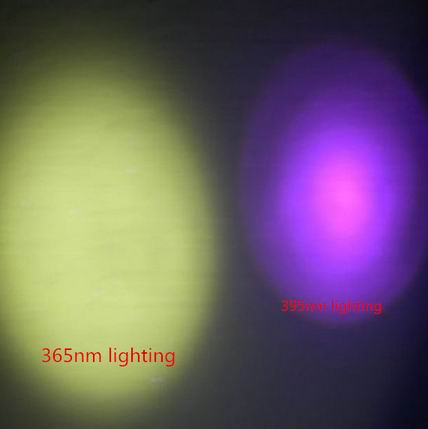

Image: 365nm Lighting & 395nm Lighting
Image: 80w UV LED Lighting Effect
Image: 100W UV LED Lighting Effect
