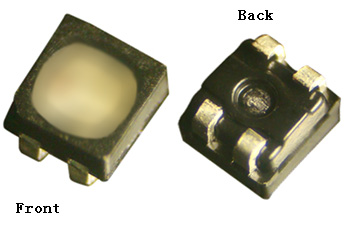

Top SMD1515 LED Full-color Series

For Indoor Full-color Display P3, P2.5, P 2.0

Brief Description of Top SMD1515 LED Full-color Series

  1. Small Size: 1.5*1.6*1.0 mm ,closer dot-pitch & high reliability can come true
  2. Emitting color: RGB
  3. Viewing angle(Typ.): 120°
  4. Encapsulation type: PLCC
  5. Excellent color matching & luminous intensity distribution: Chips put in horizontal order so that the optical mixing is uniform
  6. High contrast, brightness & clarity ratio: Black shell without reflection
  7. Sensitive to ESD
  8. Package: 3000pcs/bag
  9. Application
    Widely applied in indoor full-color display P3, P2.5, P2.0
    • War room
    • Studio or Broadcast room
    • Exhibition hall

Top SMD1515 LED Full-color Series

Part Number Luminous
Intensity
(mcd)
Forward
Voltage
(V)
Dominant
Wavelength
(nm)
Viewing
Angle
(Typ. °)
If(mA) Reverse
Current
(uA) Vr=9V
Min Max Min Max Min Max
SD-C1515FCECHWH-AP 120 256 1.9 2.2 620 630 120 20 1uA(MAX.)
520 720 2.9 3.4 520 530 120 20
60 100 3.0 3.5 465 475 120 10



Download Specifications of Top SMD1515 LED Full-color Series
