18W LED Ceiling Light Heat Sink-STH18

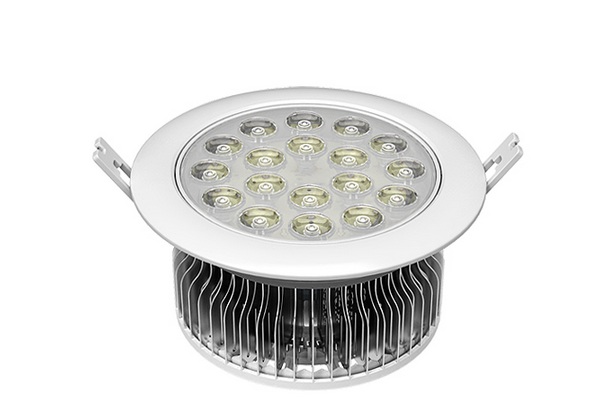

Photo Display:

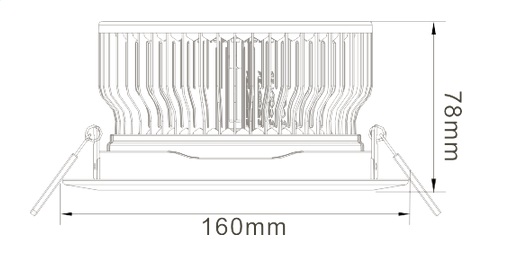

Size:
Parameters
| Power(W) | 18 |
| Voltage(V) | 54 |
| Current(mA) | 300 |
| CHIP Model | XPE/XPG 1LA5 |
| LED QTY(pcs) | 18 |
| Any way | 1P18S |
| PCB size(mm) | Φ99﹡2.0 |
| Beam Angle | XPE/XPG 60° 1LA5 35° |
Brief Description of 18W LED Ceiling Light Heat Sink-STH18
- Piece of fins: 0.4 * 48 Pcs
- Cooling area: 2198 CM2
- Applicable power: 18W
- Structure of the whole lamp: Heatsink + Aluminum plate + lens + power supply + lighting source.
- Available parts: Aluminum plate
- Customer DIY: Power supply + lighting source
- Dimention: Φ160*78
Application:
Widely used in hotel, restaurant,supermarket,museum,living room,dining room,sleeping room and so on.
