Power IR LED or Infrared LED Light Source

Power IR LED or Infrared LED Light Source

Model No.Walts(W)WL(nm)/CCT(K)Chip QuantityChip BrandMaterial
SD-P1IR-1W01 1wHigh Power
Infrared LED @
670nm 675nm
690nm 700nm
705nm 730nm
740nm 750nm
760nm 770nm
800nm 810nm
820nm 830nm
840nm 850nm
860nm 870nm
880nm 890nm
920nm 930nm
940nm 950nm
960nm		1 * 1 = 1USA LED CHIPCopper Board and 1.2mil Gold Thread
SD-P1IR-3W01 3w 3 * 1 = 3USA LED CHIPCopper Board and 1.2mil Gold Thread
SD-P1IR-5W01 5W 4 * 1 = 4USA LED CHIPCopper Board and 1.2mil Gold Thread
SD-P1IR-6W01 6w 3 * 2 = 6USA LED CHIPCopper Board and 1.2mil Gold Thread
SD-P1IR-10W01 10W 3 * 3 = 9USA LED CHIPCopper Board and 1.2mil Gold Thread
SD-P1IR-16W01 16w 4 * 4 = 16USA LED CHIPCopper Board and 1.2mil Gold Thread
SD-P1IR-20W01 20w 5 * 4 = 20USA LED CHIPCopper Board and 1.2mil Gold Thread
SD-P1IR-50W01 50w 5 * 10 = 50USA LED CHIPCopper Board and 1.2mil Gold Thread
SD-P1IR-100W01100w 10 * 10 = 100USA LED CHIPCopper Board and 1.2mil Gold Thread
SD-P1IR-200W01200w 10 * 20 = 200USA LED CHIPCopper Board and 1.2mil Gold Thread
SD-P1IR-300W01300w 15 * 20 = 300USA LED CHIPCopper Board and 1.2mil Gold Thread
SD-P1IR-500W01500w 25 * 20 = 500USA LED CHIPCopper Board and 1.2mil Gold Thread
SD-P1IR-600W01600w 25 * 25 = 625USA LED CHIPCopper Board and 1.2mil Gold Thread
SD-P1IR-800W01800w 40 * 20 = 800USA LED CHIPCopper Board and 1.2mil Gold Thread
SD-P1IR-1000W011000w 35 * 30 = 1050USA LED CHIPCopper Board and 1.2mil Gold Thread
  • Absolute Maximum Ratings At Ta=25°C
  • Viewing Angle(°): 120±5
  • CRI: 70-95 Ra are available
  • PCB Board Material: Copper
  • Gold thread spec: 1.2mil Au
  • ESD Sensitivity(V): 4000
  • Storage Temperature(°C): -35 ~ +100
  • Operating Temperature(°C): 350 for 5 seconds Max

Features

  • Wavelength: 850nm,880nm,940nm.
  • Used for infrared surveillance, infrared sensors, remote control, etc.
  • Long life & low decay.
  • PB free & ROHS compliant
  • IC compatible
  • Fast response
  • Low energy consumption
  • Environment-friendly: no mercury and other harmful heavy metal, no light harmful for plant
  • Idea you give, Customized product we supply , contact us now

Warranty

  • Three years quality assurance
  • High power LED light commitment (substrate temperature <55℃): 1000h < 3%; 3000h < 5%; 10000h < 10%

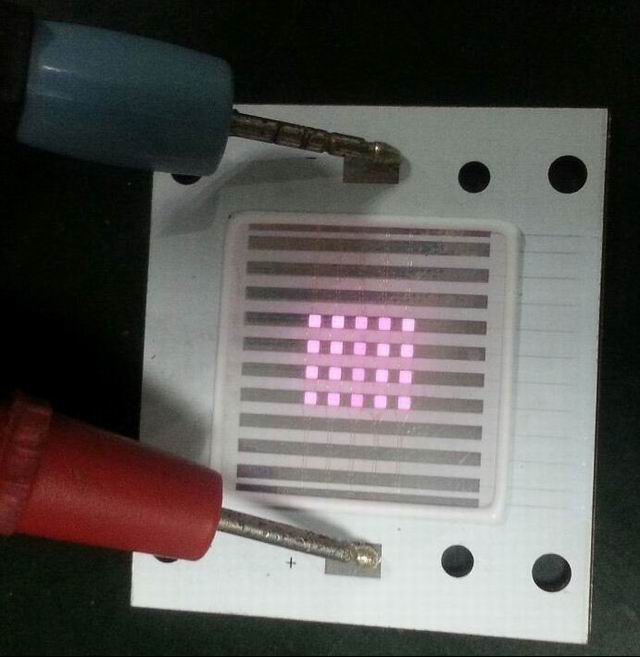

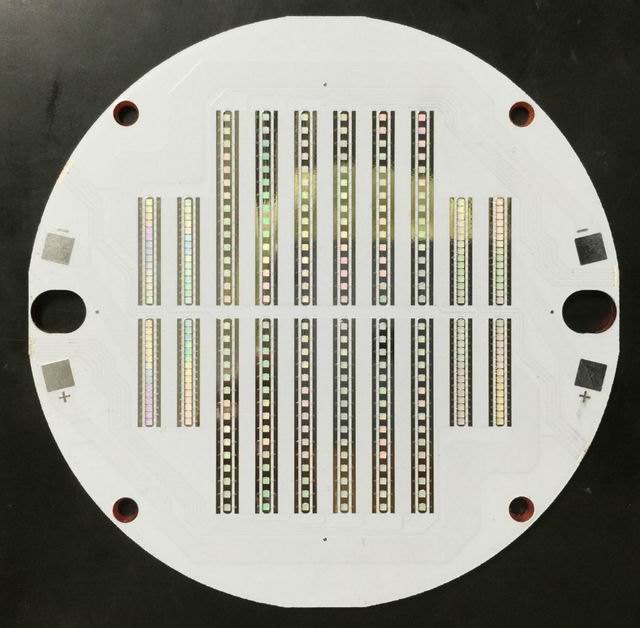

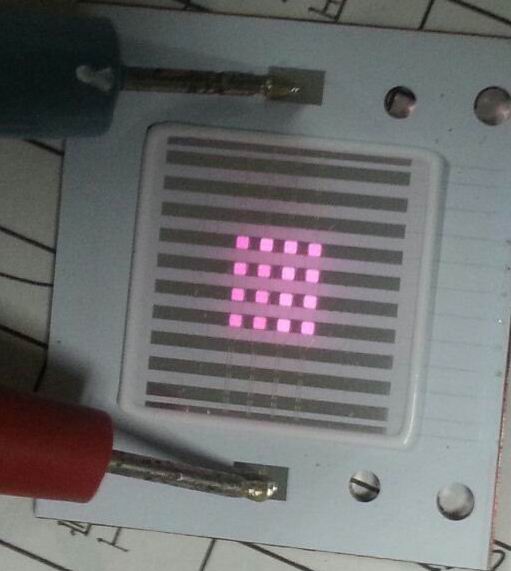

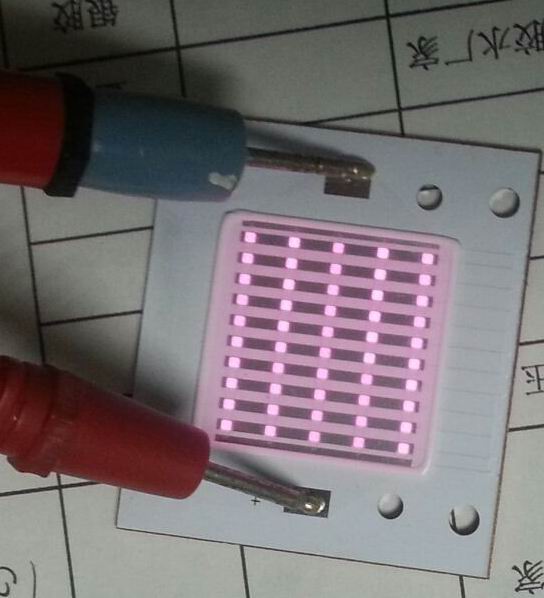

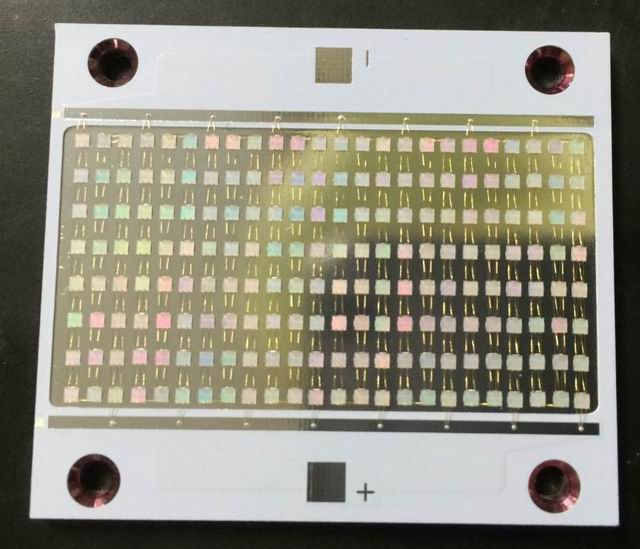

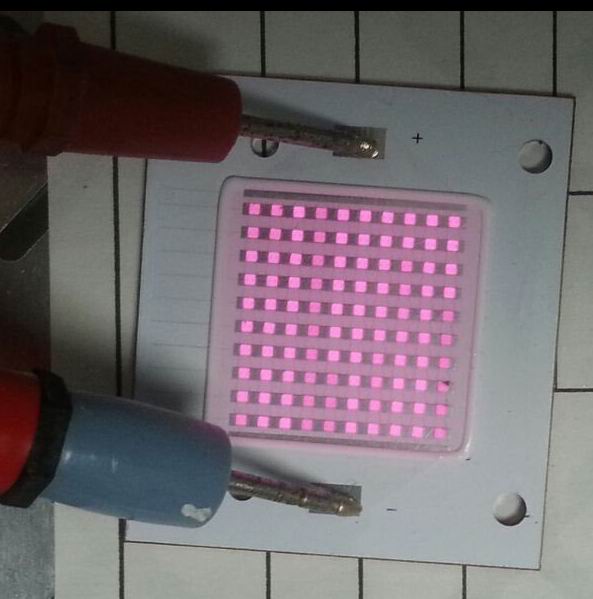

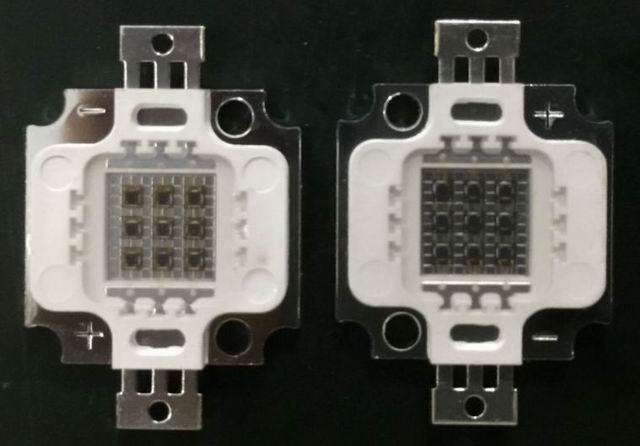

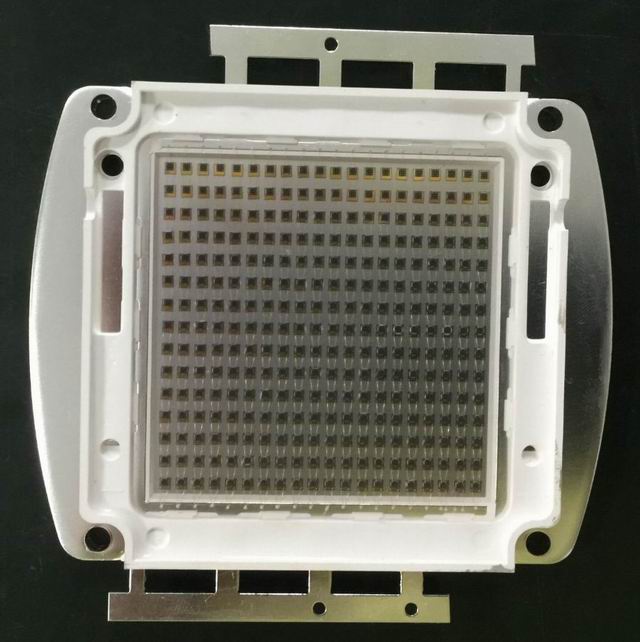

Products Pictures of High Power Infrared LED Diode

Image: High Power Infrared LED Diode
Image: High Power Infrared LED Diode
Image: High Power Infrared LED Diode
Image: High Power Infrared LED Diode
Image: High Power Infrared LED Diode
Image: High Power Infrared LED Diode
Image: High Power Infrared LED Diode
Image: High Power Infrared LED Diode
