LED Clock Board

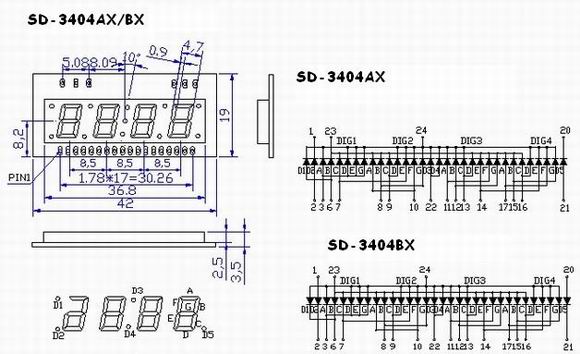

LED Clock board Four digits 0.30" Size:42*19*3.5

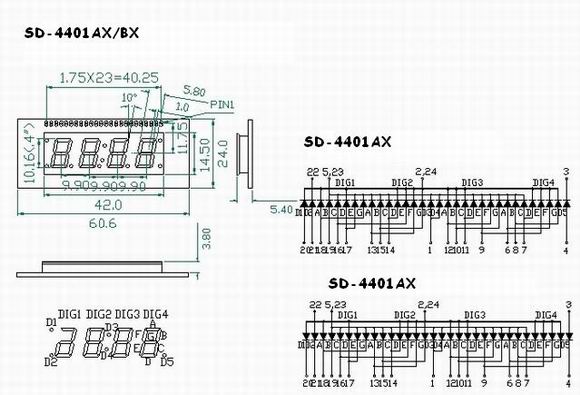

LED Clock board Four digits 0.40" Size:60.6*24*3.8

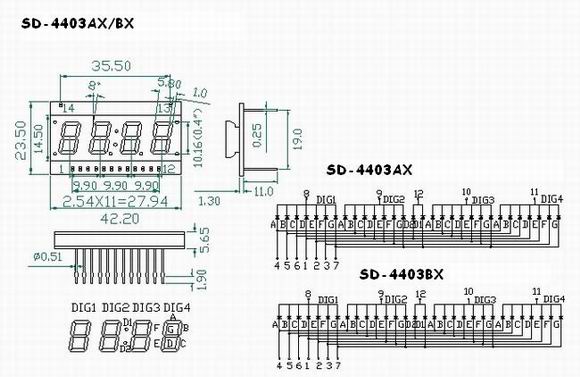

LED Clock board Four digits 0.40" Size:42*23.5*5.6

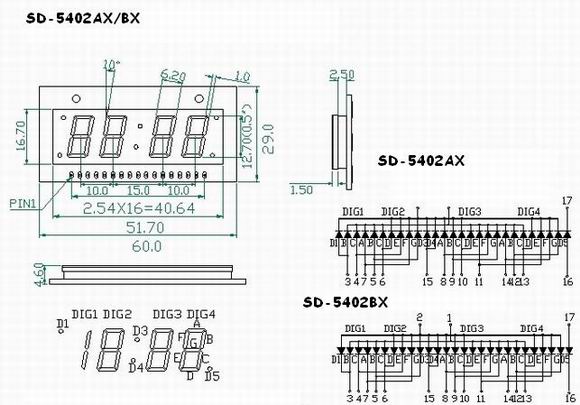

LED Clock board Four digits 0.50" Size:60*29*4.6

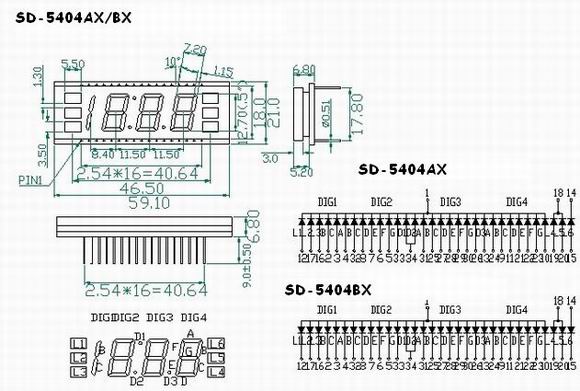

LED Clock board Four digits 0.50" Size:59*21*6.8

LED Clock board Four digits 0.60" Size:92*25.5*55

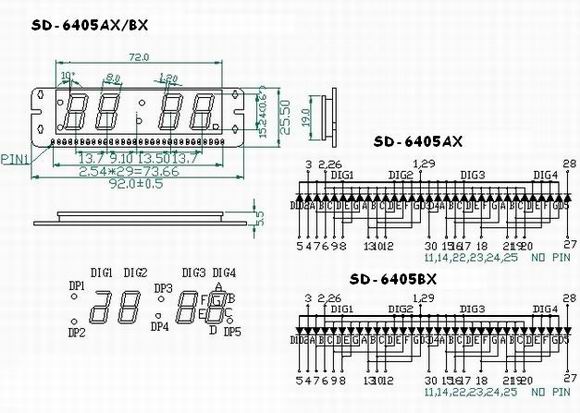

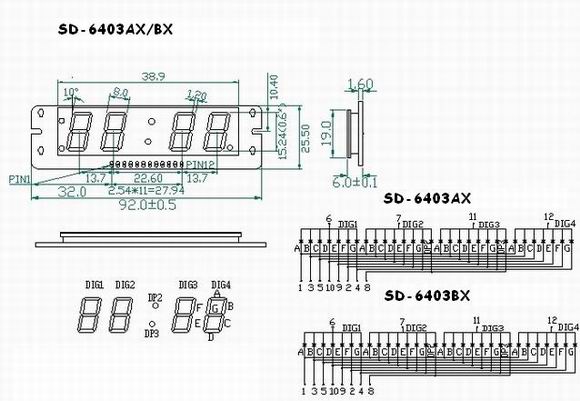

LED Clock board Four digits 0.60" Size:92*25.5*6

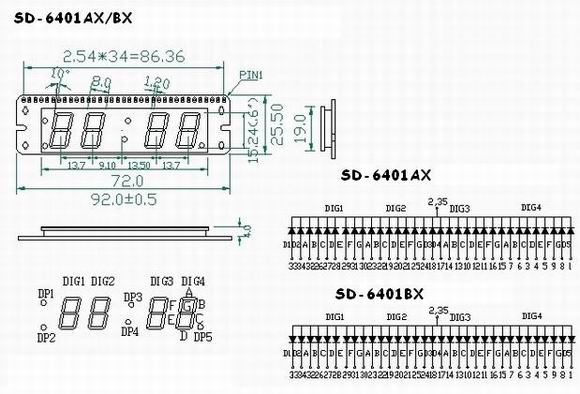

LED Clock board Four digits 0.60" Size:92*26*5.5

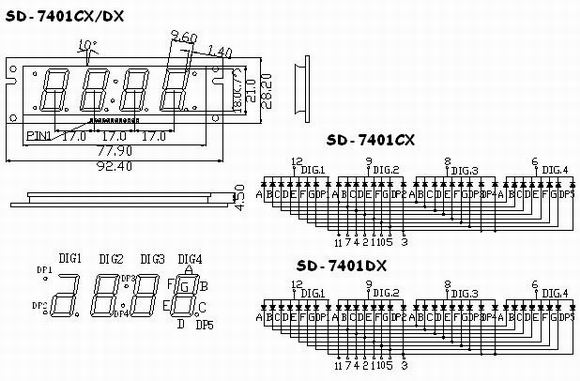

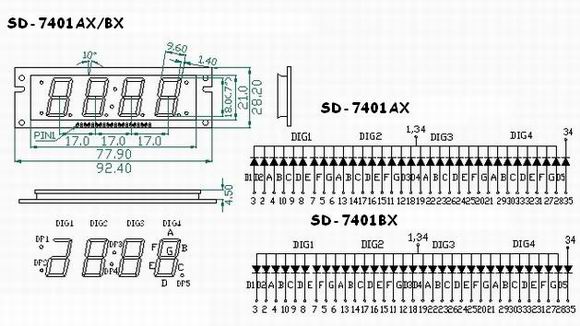

LED Clock board Four digits 0.70" Size:92.4*28*7

LED Clock board Four digits 0.70" Size:92.4*28*7

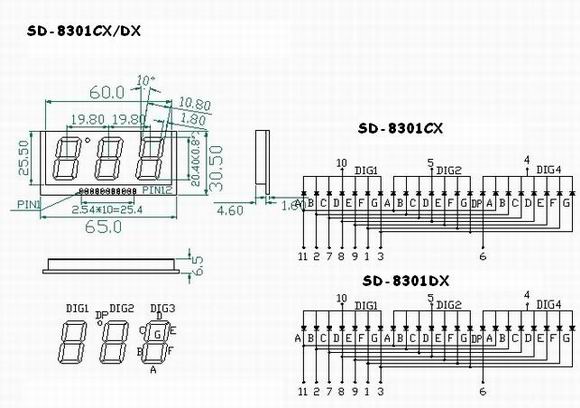

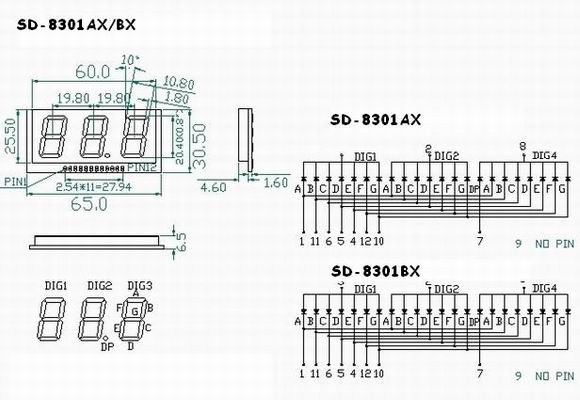

LED Clock board Three digits 0.80" Size:65*30.5*6.5

LED Clock board Three digits 0.80" Size:65*30.5*6.5

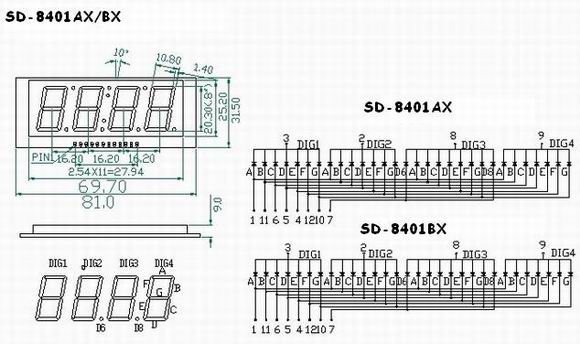

LED Clock board Four digits 0.80" Size:81*31.5*9

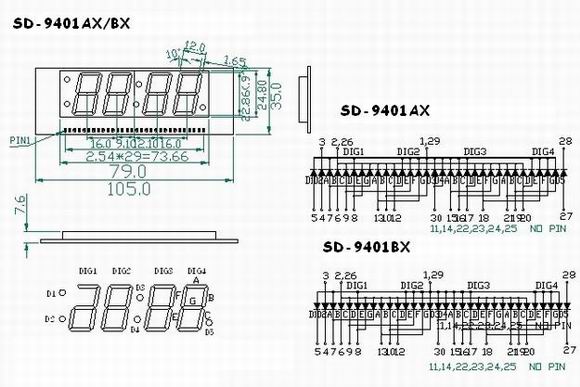

LED Clock board Four digits 0.90" Size:105*35*7.6

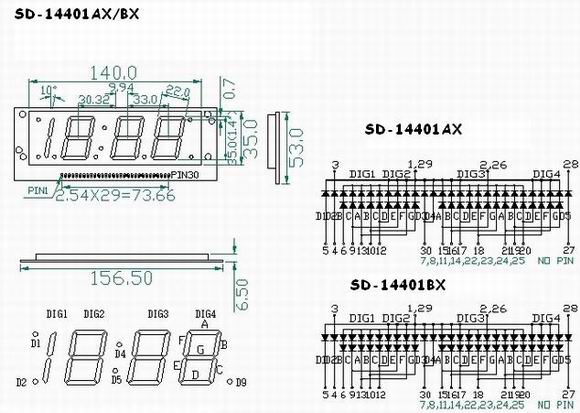

LED Clock board Four digits 1.4" Size:156*53*6.5

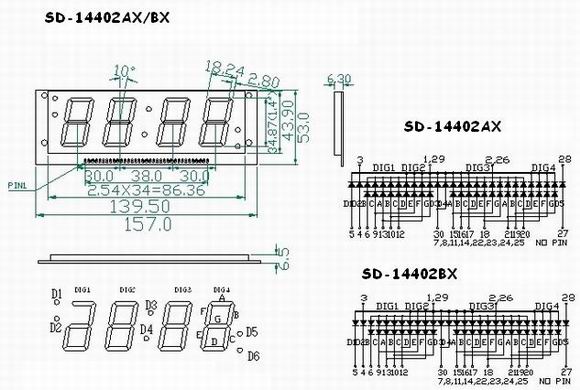

LED Clock board Four digits 1.4" Size:157*53*6.5

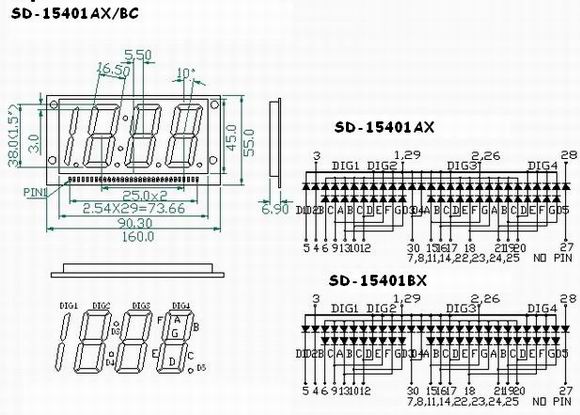

LED Clock board Four digits 1.5" Size:160*55*6.9

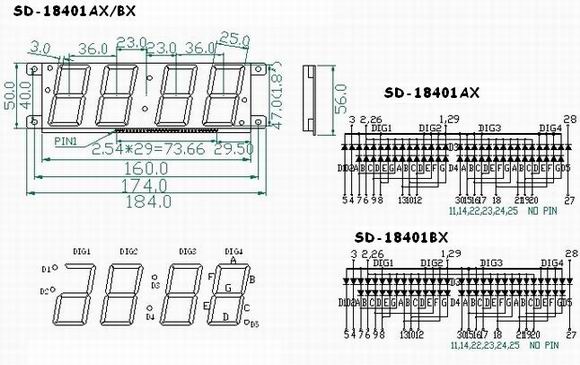

LED Clock board Four digits 1.8" Size:184*50*8.5

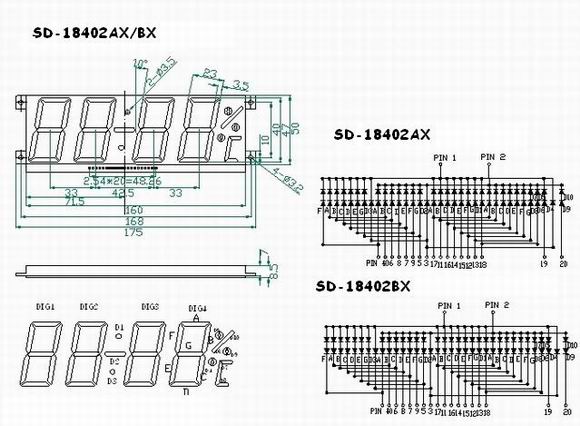

LED Clock board Four digits 1.8" Size:175*50*8.5

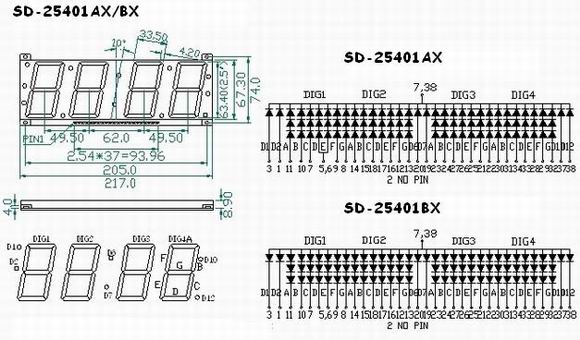

LED Clock board Four digits 2.5" Size:217*74*8.9

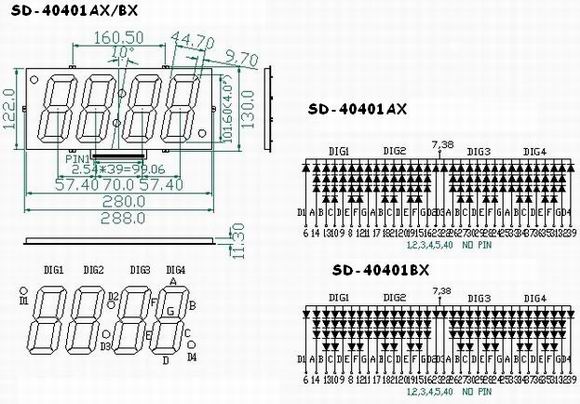

LED Clock board Four digits 4.0" Size:288*130*113

Features: High brightness, reliable, long life, low power, compatible with IC.

Remark:

1. Dimensions in mm, allowing tolerance of plus or minus 0.25mm

2. Each PIN foot may be plus or minus 5°
